What is included in the Guitar Prewired Wiring Harness?

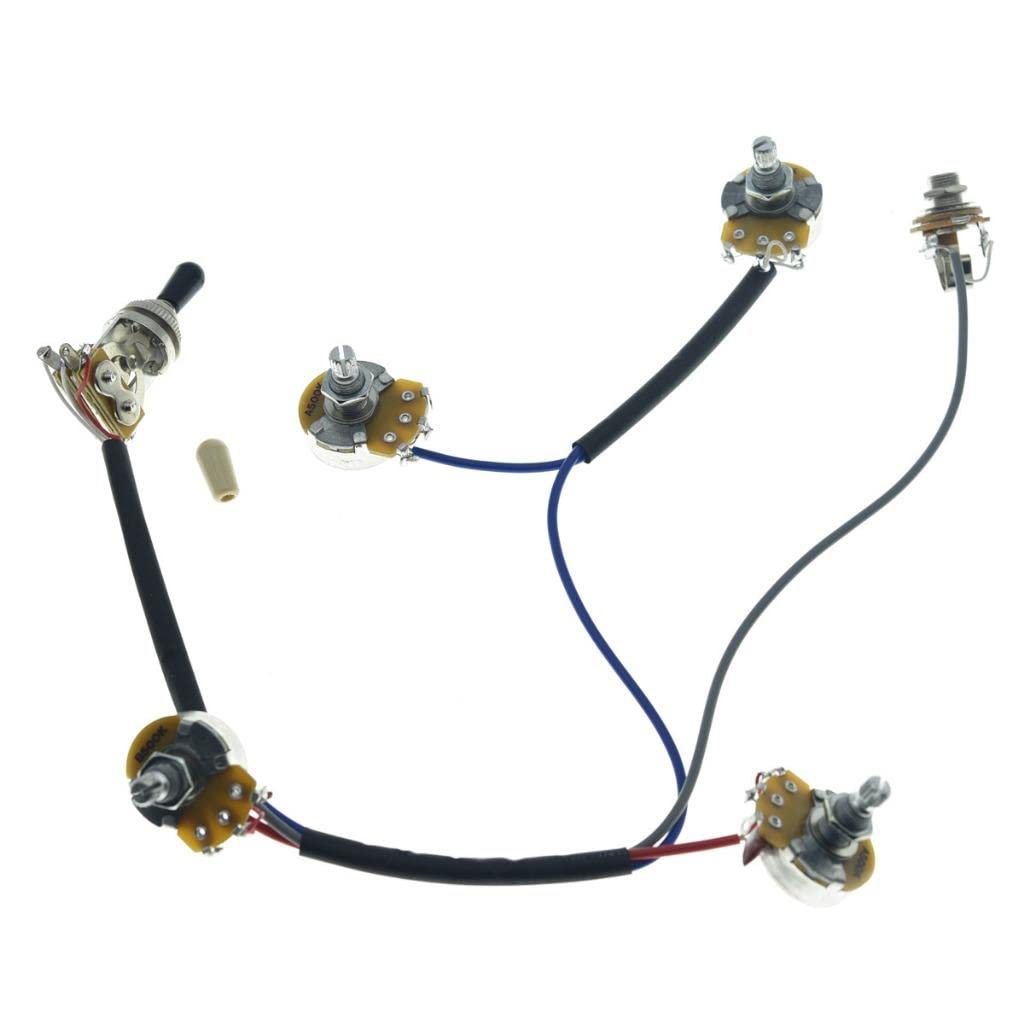

The package includes a prewired wiring harness with 500K full-size potentiometers (2 A500K for tone positions and 2 B500K for volume positions), .022uF capacitors, a 1/4" output jack, quick connectors, toggle switch tips (black and ivory), and necessary nuts and washers.

Is this wiring harness compatible with my Epiphone guitar?

Yes, this wiring harness is designed as a direct fit for Epiphone LP, SG, and Dot series guitars with a 2 humbucker setup.

How do I install this wiring harness?

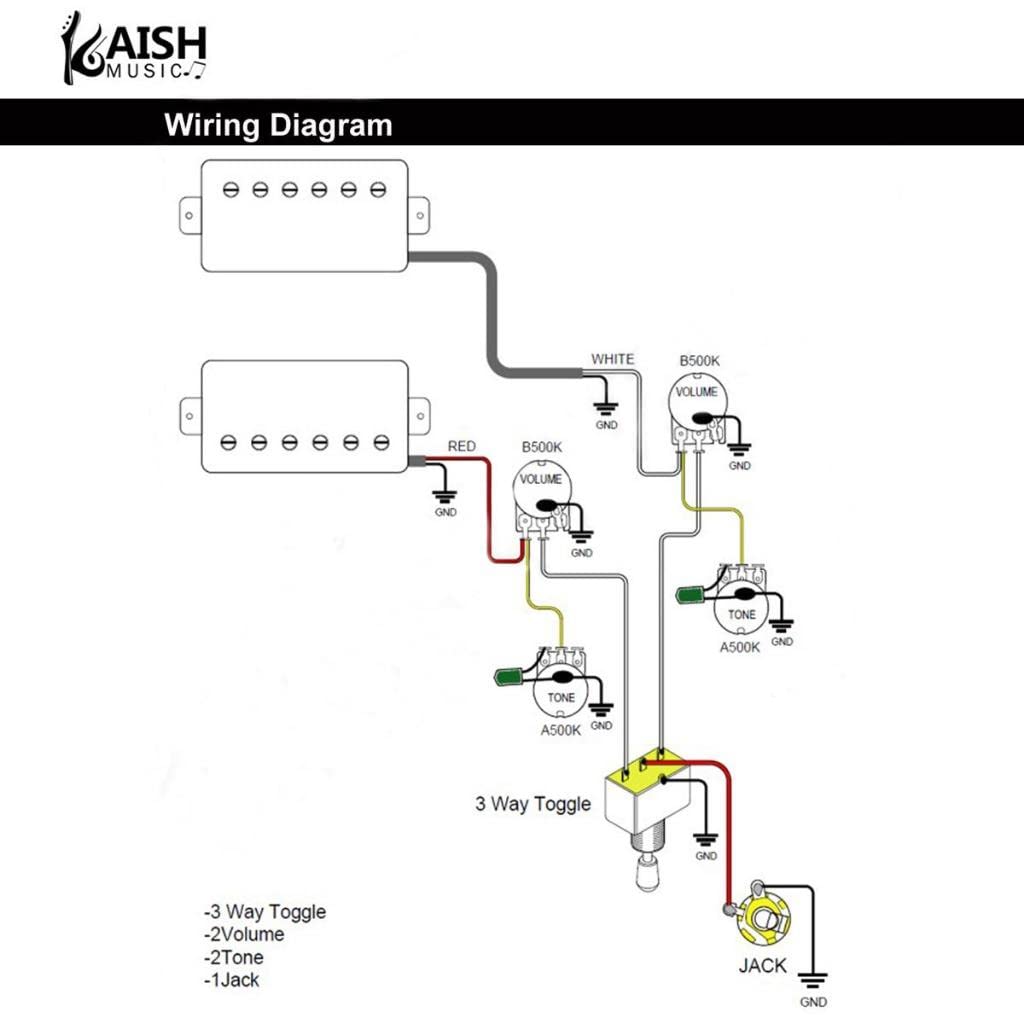

Installation is straightforward; you simply need to solder the signal wires from your pickups to the two volume B500K pots and connect the ground wire to the back of the same pots. Please refer to the included diagram for detailed wiring instructions.

Can I use this harness for other guitar brands?

While it is specifically designed for Epiphone models, it may fit other guitars with similar specifications. However, it is recommended to verify compatibility before purchasing.

What type of pots are included in this harness?

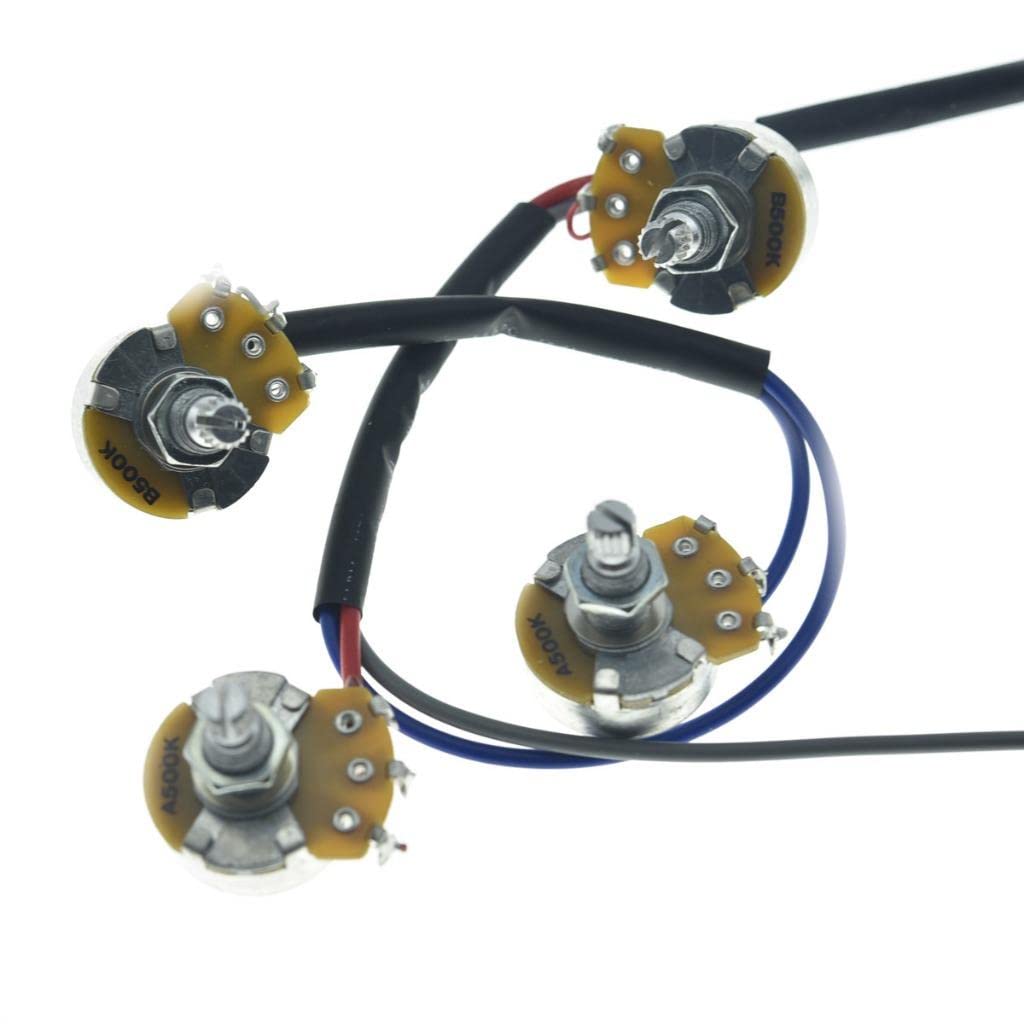

The harness includes 500K full-size potentiometers, specifically 2 A500K pots for tone and 2 B500K pots for volume, which are standard in many electric guitar setups.

Do I need any special tools for installation?

Basic soldering tools are required for installation, including a soldering iron and solder. Additionally, having wire cutters and strippers can be helpful.

What is the advantage of a solderless wiring harness?

A solderless wiring harness simplifies the installation process, making it easier and quicker to connect your guitar's electronics without extensive soldering skills.

Are the components of this harness of high quality?

Yes, this wiring harness features premium quality components, including metric parts and a reliable solderless wiring terminal for secure connections.

Can I replace the toggle switch tips?

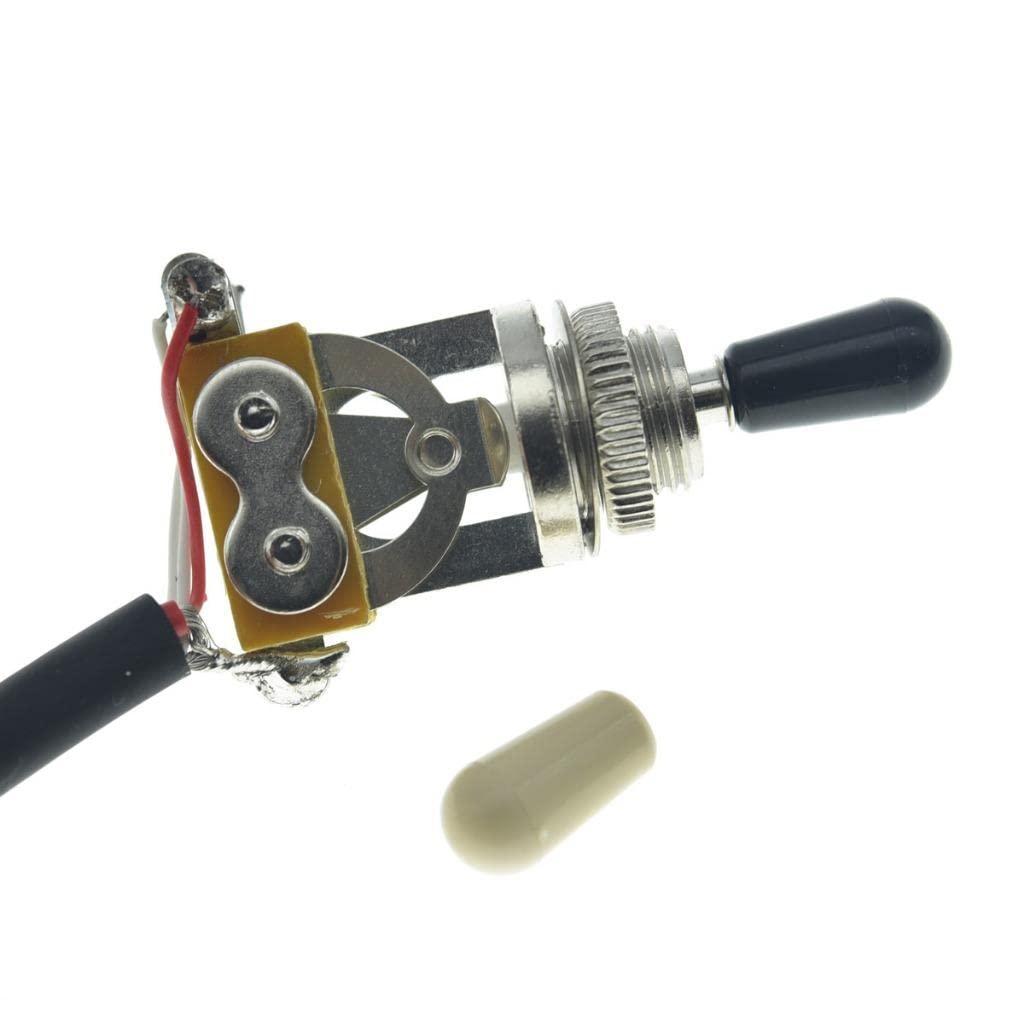

Yes, the harness comes with two toggle switch tips (black and ivory), allowing you to customize your guitar's appearance.

What is the best way to care for the wiring harness?

To ensure longevity, avoid exposing the wiring harness to excessive moisture and heat. Regularly check connections for any signs of wear or corrosion.

Guitar Prewired Wiring Harness Humbucker Solderless Wiring Harness 2V2T With 500K Pots And 3 Way Toggle Switch For Dot Series

Guitar Prewired Wiring Harness Humbucker Solderless Wiring Harness 2V2T with 500K Pots and 3 Way Toggle Switch For Dot Series

Regular price $27.21
3 available

Availability: 3 item(s) left in stock!

Wishlist Compare

Brand: KAISH

Sku: WBMUSB0BB77KQNH
