What is the resistance of the Musiclily Pro HD B25K potentiometer?

The Musiclily Pro HD B25K potentiometer has a resistance of 25K ohms with a tolerance of 20%.

Is this potentiometer suitable for active systems?

Yes, this potentiometer is designed for use in active systems with battery-powered preamps.

What type of guitars and basses can I use this potentiometer with?

This potentiometer fits most imported or Asia-made electric guitars and basses.

What are the dimensions of the split shaft?

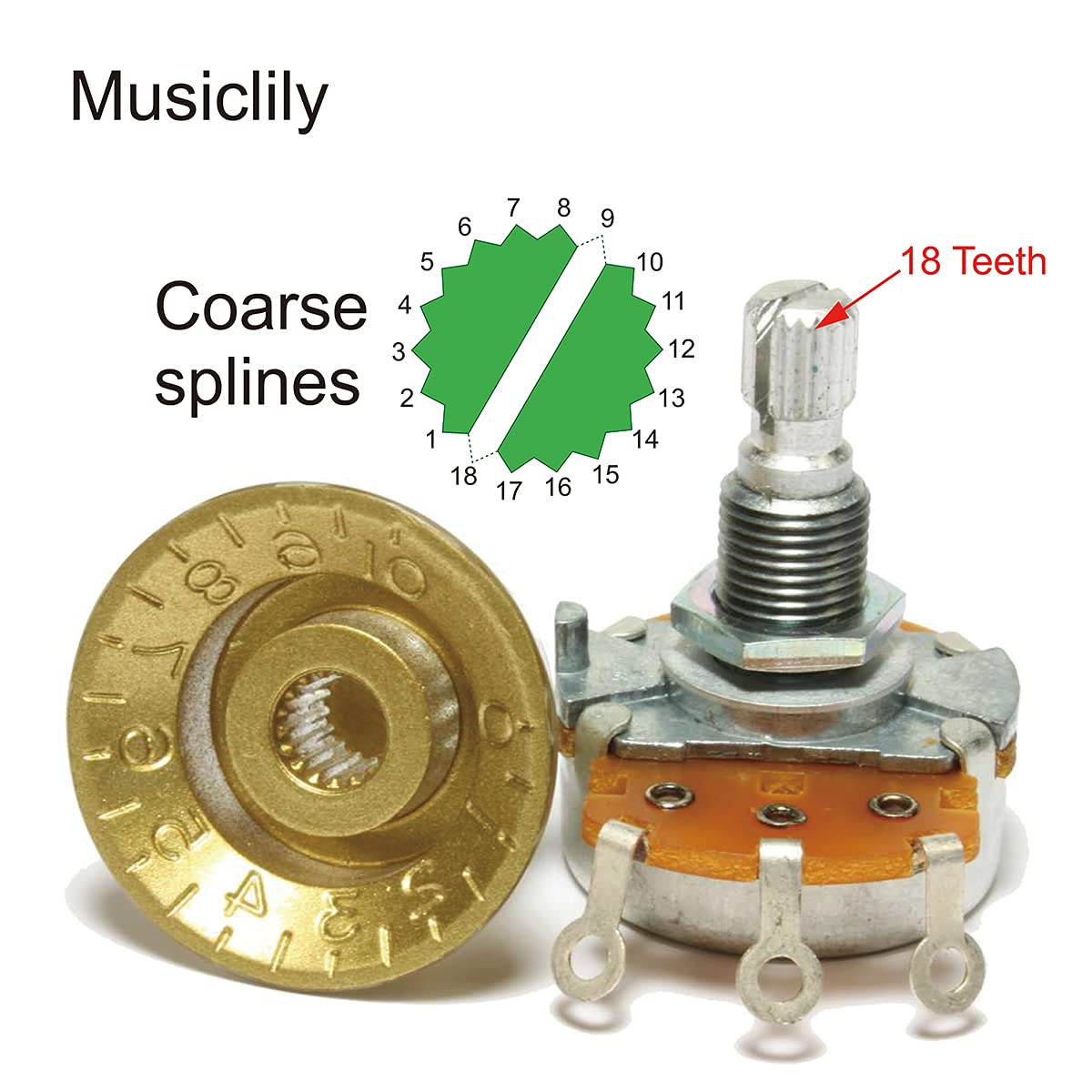

The coarse 18-spline split shaft has a diameter of 6mm (15/64 inch).

What is the material of the shaft and thread?

The shaft and thread of this potentiometer are made from full brass, which provides better conductivity.

Does the package include mounting accessories?

Yes, the package includes 1 piece of the potentiometer along with mounting accessories.

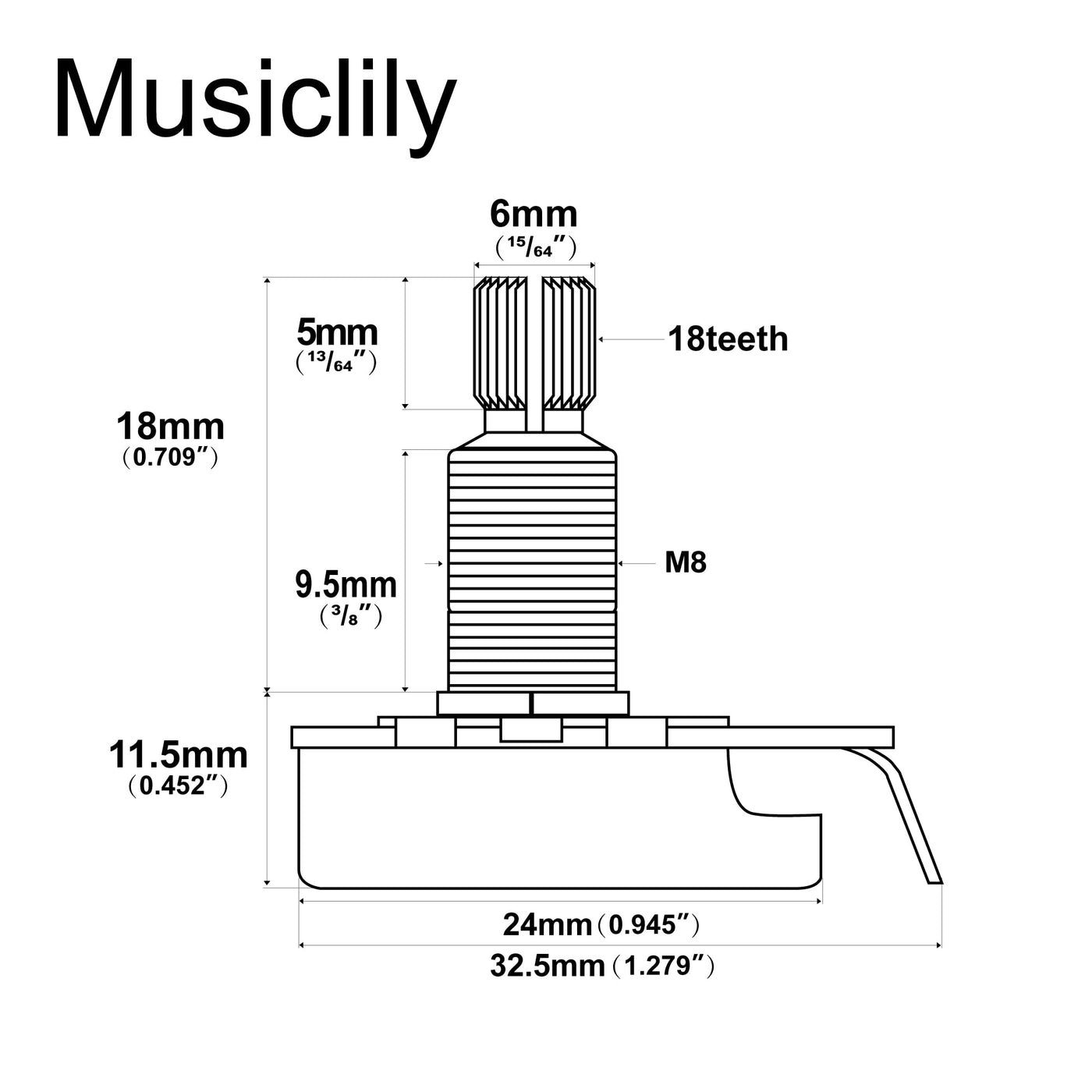

What is the threaded bushing diameter and height?

The threaded bushing diameter is M8, and the height is 10.5mm (13/32 inch).

Can I use this potentiometer for DIY guitar projects?

Yes, this potentiometer is a great option for DIY guitar projects due to its compatibility with various electric guitars and basses.

Is this potentiometer easy to install?

Yes, it is designed for easy installation, especially with the included mounting accessories.

What type of taper does this potentiometer have?

The Musiclily Pro HD B25K potentiometer features a linear taper.

Musiclily Pro Hd B25K Full Brass Metric Coarse 18-Spline Split Shaft Pot Linear Taper Potentiometer For Electric Guitar Bass

Musiclily Pro HD B25K Full Brass Metric Coarse 18-Spline Split Shaft Pot Linear Taper Potentiometer for Electric Guitar Bass

Regular price $13.15
3 available

Availability: 3 item(s) left in stock!

Wishlist Compare

Brand: Musiclily

Sku: WBMUSB0BR8YWTH7

UPC: 194296023307
