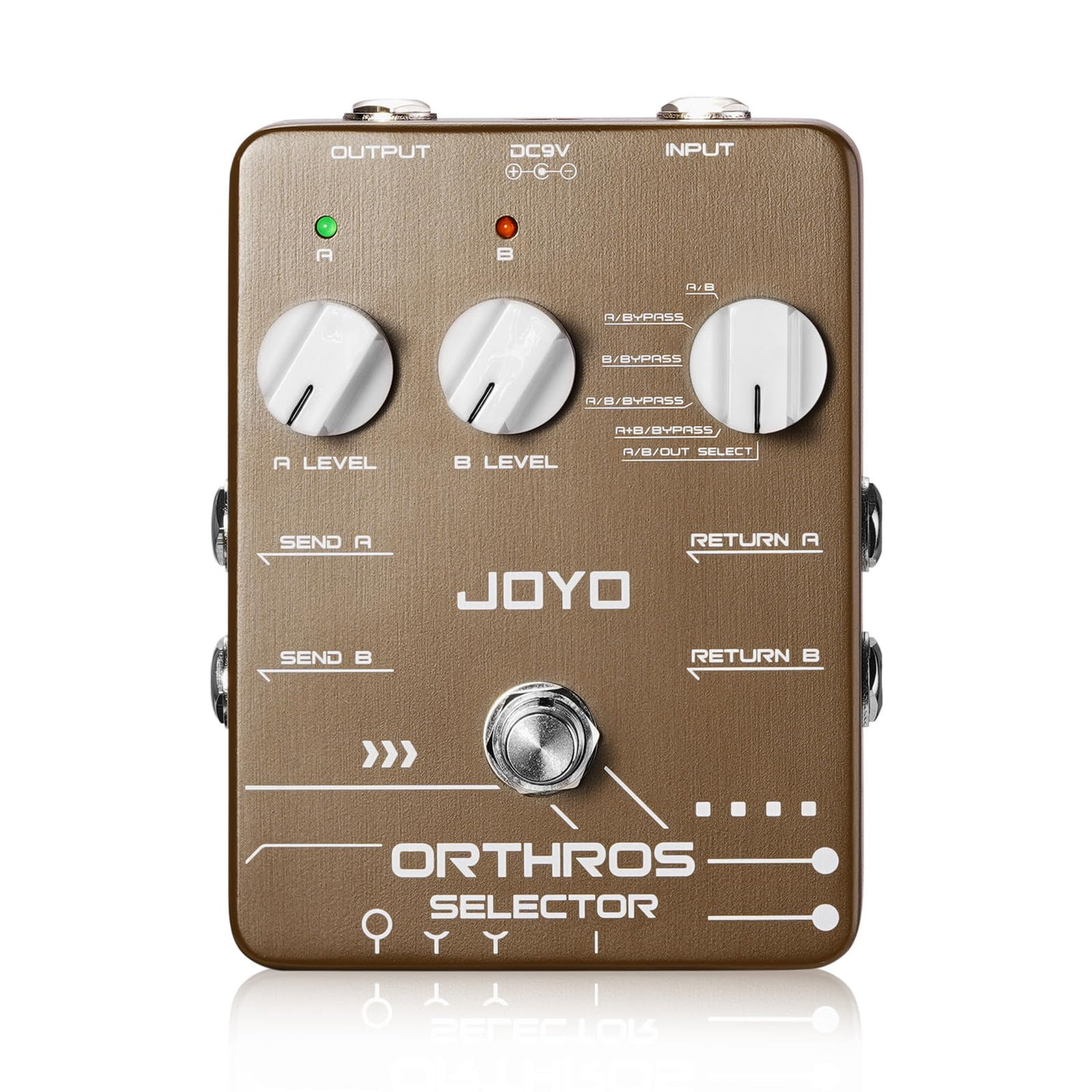

JOYO Line Selector Guitar Pedals 6 Mode Switch with AB 2 Effect Loops Independent Control Channel for Electric Guitar Bass (ORTH

Instruction: JOYO has over decade of brand reputation, with own acoustic core technology and a much more strong technical team, thousands innovative patents, guide design by music masters, winning the love of global guitarists. One of them is the main products: JF series guitar pedals. JF-24 ORTHROS SELECTOR is a multiple line selector pedal can be switched among various devices and digital pedals. It offers 2 Effects Loop, 6 Looping modes. Line Loop A and Line Loop B by adjusted LEVEL Control Knobs respectively, delivering multiple output effects according to 6 modes including A/B, A/BYPASS, B/BYPASS, A/B/BYPASS, A+B/BYPASS, A/B/BYPASS. Tips 1. Battery (9V 6F22) or Power supply DC 9V (center negative) both are NOT included in the package. 2. JOYO original power supply or other reliable brands can be recommended Specifications: INPUT: 1/4 Mono Audio Jack(Impedance 1M Ohms) OUTPUT: 1/4 Mono Audio Jack(Impedance 1K Ohms) RETURN A: 1/4 Mono Audio Jack(Impedance 1M Ohms) SEND A: 1/4 Mono Audio Jack(Impedance 1K Ohms) RETURN B: 1/4 Mono Audio Jack(Impedance 1M Ohms) SEND B: 1/4 Mono Audio Jack(Impedance 1K Ohms) Power requirements: DC 9V power adapter(Center minus) Current draw: 22mA Dimensions: 120mm(L) X 97mm (W) X 55mm (H)
