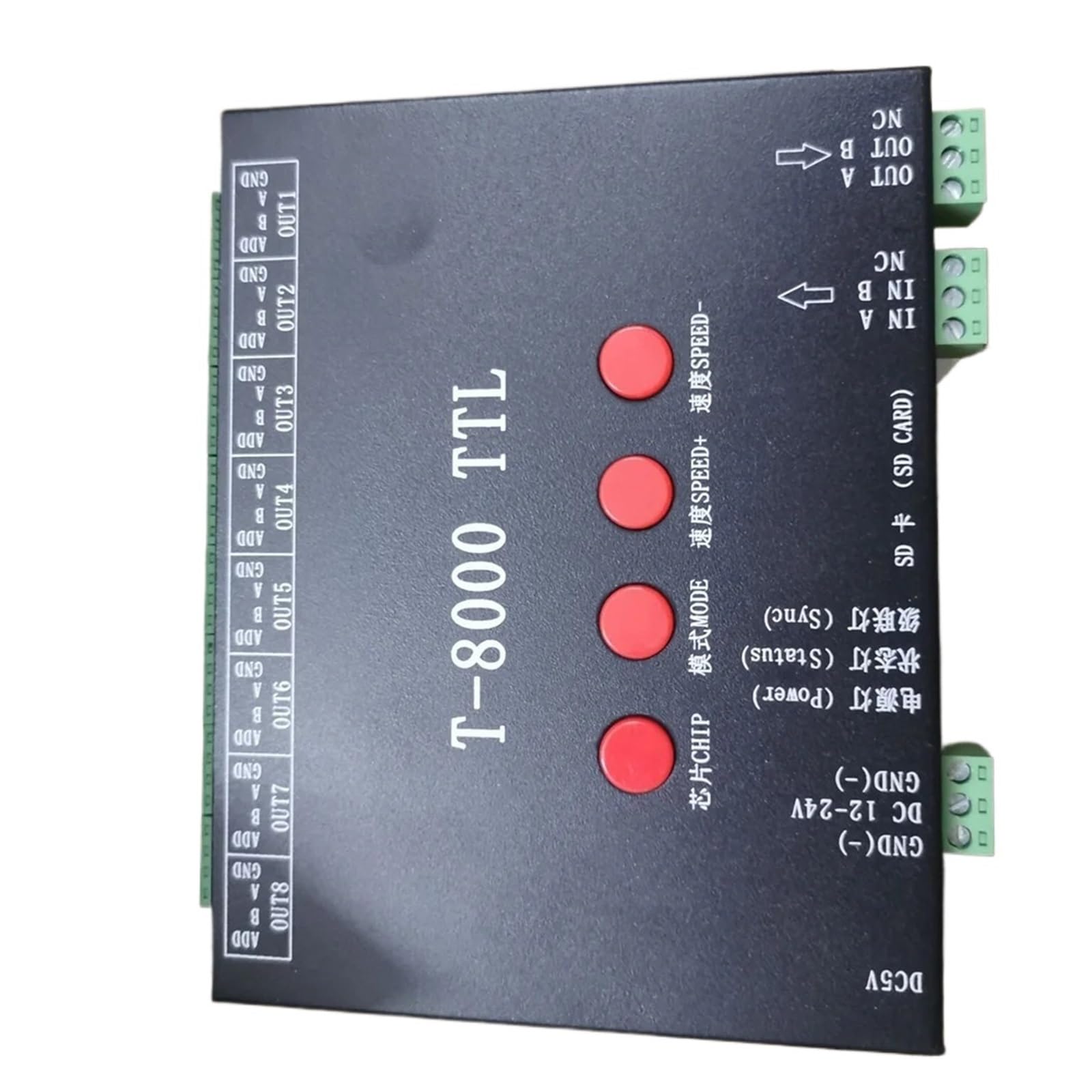

YIOGEQKWG DC5V 12V-24V T-8000A TTL LED Pixel Controller with SD Card Program Suitable for ws2812b/WS2811/WS2813/LPD6803/DMX512 L

Industrial Power SupplyDC5V 12-24V T-8000A TTL LED pixel controller with SD card program suitable for ws2812b/WS2811/WS2813/LPD6803/DMX512 LED stripsProduct type: RGB controller Features: Maximum control of 8192 lights Power: 3 watts Certification: CE, EMC, RoHS, UL Color: Black Material: Iron Power supply: DC Connection mode: 3-pin connection port Model: T-8000A-TTL Oscillation Frequency: 50/60Hz Control method: SD card Maximum load: 8192 pixels Support IC: 50 types Input port: 8 ports T-8000A-TTL system features1.32-65536 gray, supports software Gamma correction.2. Supports points, lines, surfaces, rules and special-shaped handles.3. Eight output ports, supporting 1024 pixels.4. Multiple controllers can be cascaded together and work synchronously. long distanceThe distance between each two controllers can reach 200 meters. Display content is stored on the SD card.5.T-8000A can store up to 16 programs and can copy multiple files to the SD card in sequence.notes:1. When the T8000A--TTL controller drives less than 512 pixels, the frame rate can reach 30fps.When the T-8000A-TTL controls exceed 512 pixels, the frame rate automatically slows down.2.T-8000A-TTL must use LedEdit2013 software.Support IC tableIC typeLedEdit corresponding modeLoad pixelsnotesTM1803,TM1804,TM1809, TM1812T-8000-TM18038192 pixelsThere is a highwayand low speedTM1829T-8000-TM18298192 pixelsThere is a highwayand low speedUCS1903,UCS1903B,UCS1909,UCS1912T-8000-UCS19038192 pixelsThere is a highwayand low speedUCS2903, UCS2909, UCS2912,T-8000-UCS29038192 pixelsThere is a highwayand low speedUCS3903T-8000-UCS10248192 pixelsUCS6909, UCS6912,UCS7009, UCS5903T-8000-UCS69098192 pixelsTA9909T-8000-TA99098192 pixelsThere is a highwayand low speedMBI60
